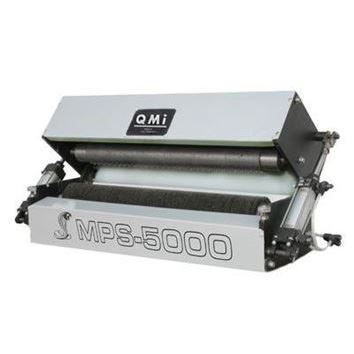

Picture of QMI MPS-5000 Cold Micro Perforation System
We have the solutions you are looking for. Request A Quote

QMI MPS-5000 Cold Micro Perforation System

The QMI MPS-5000 is a reliable and economical machine that allows continuous perforation of .025” diameter through .100” diameter holes across the entire moving web or only in required areas of the web.


  • Interchangeable pin sleeves over a carrier roll.
  • Brush backup roll supports the web and allows pins to penetrate.
  • Movement of the web across the pins provides rotation to the unit.
  • Perforate only specific strips of the web by using pinned and blank sleeves.
  • Perforate different patterns or hole sizes in areas of the web.
  • Square, diamond, offset and custom patterns are available.
  • Capable of perforating small and closely spaced holes.
  • The clamshell style enclosure opens and closes pneumatically and provides full safety guarding.
  • In- or out-of-line operation.
  • Mount horizontally, vertically or upside down.
  • Can be placed in a wide variety of locations because of its small cross section.
  • Can be converted to produce slit perforations.
